Harmonic pollution is one of the most prevalent power quality issues in modern industrial and commercial power distribution networks. Large-scale use of frequency converters, welding machines, UPS, EV charging piles and other nonlinear loads injects massive harmonic currents into the grid. These unwanted harmonics lead to transformer and cable overheating, frequent protection tripping, premature failure of capacitor banks, malfunction of PLC and precision instruments, and higher electricity consumption. An integrated APF (Active Power Filter) cabinet is an ideal device to tackle these challenges and keep your power system stable.

the power distribution rooms of industrial enterprises, harmonic issues have evolved from "hidden fault sources" into "explicit operational risks". The widespread adoption of nonlinear loads such as variable frequency drives, welding equipment, UPS systems, LED lighting and switching power supplies has boosted production efficiency while injecting substantial harmonic currents into the power grid.

Harmonics cause systemic hazards: they overheat and overload capacitors, generate additional losses and temperature rises in transformers, disrupt the normal operation of sensitive electronic equipment (including PLCs, sensors and computers), and may even trigger false tripping of protection devices. The demand for harmonic mitigation has shifted from an "optional add-on" to a fundamental project for safeguarding production stability.

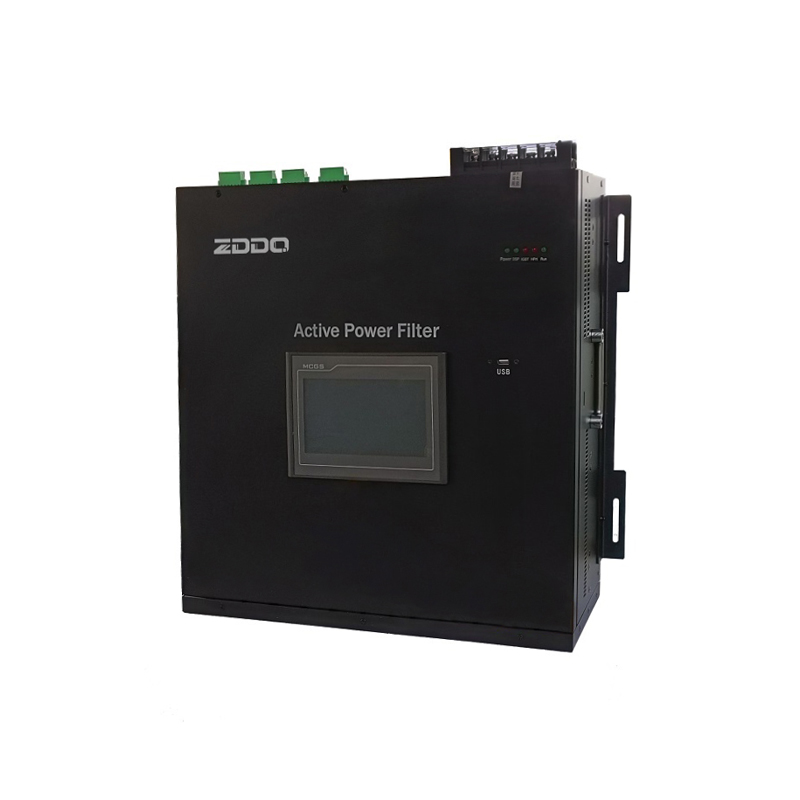

The Active Power Filter (APF) represents one of the mainstream technical solutions for harmonic problems. Unlike passive filters, which consist of tuned branches made of capacitors and reactors, APFs avoid resonance, are immune to changes in system impedance, and can mitigate multiple harmonic orders simultaneously, delivering distinct advantages under complex harmonic conditions.

1. Classification of Common Harmonic Sources in Industrial Sites

Variable Frequency Drives (VFDs): These are the most common harmonic sources in industrial facilities. VFDs convert grid-frequency AC power into DC power via rectifiers, and then invert the DC power into adjustable-frequency AC power. The rectification stage generates abundant harmonic currents, dominated by the 5th, 7th, 11th and 13th harmonics.

Welding Equipment: Equipment such as manual arc welders, gas shielded welders and resistance welders features highly nonlinear and sharply fluctuating current waveforms. Welding equipment has a wide harmonic spectrum ranging from the 2nd to the 50th order, and it also contains certain non-integer harmonics (interharmonics).

Electric Arc Furnaces and Refining Furnaces: During smelting, the arc length of electric arc furnaces keeps changing, resulting in highly nonlinear and asymmetric current waveforms. Electric arc furnaces have an extremely broad harmonic spectrum with prominent interharmonics and subharmonics, exerting the most severe impact on power distribution systems.

UPS and Switching Power Supplies: UPS and switching power supplies adopt rectifier-inverter (or high-frequency switching) technology and serve as major sources of the 3rd, 5th and 7th harmonics. In data centers, office buildings, hospitals and other sites, the superposition of harmonics from UPS and LED lighting may cause severe voltage distortion.

Grid-Tied Renewable Energy Inverters: PV inverters and wind power converters produce switching-frequency-related harmonic currents when converting DC power into AC power. With the popularization of distributed new energy in industrial enterprises, the impact of this type of harmonic source is growing increasingly notable.

2. Basic Working Principle of APF

APFs use Current Transformers (CTs) to detect harmonic currents on the load side in real time. The controller rapidly calculates the components and magnitude of harmonic currents to be compensated, and then commands the power converter to output compensation current equal in magnitude but opposite in phase to the load harmonic current and inject it into the grid, so as to realize dynamic harmonic cancellation.

This process runs in real time with a millisecond-level response time. Unlike passive filters which only operate at fixed frequencies (determined by the parameters of tuned branches), APFs can suppress multiple harmonics from the 2nd to the 50th order (or higher) simultaneously, and their filtering performance will not be affected by variations of system impedance.

As a new-generation harmonic mitigation technology, the Active Power Filter (APF) delivers unique advantages that passive filters cannot match, especially in scenarios with wide harmonic spectra, variable system impedance and strict demands on compensation precision.
