Four-Quadrant Reactive Power Compensation Controller

Jun 23,2026

Understanding Four-Quadrant Reactive Power Compensation Controller

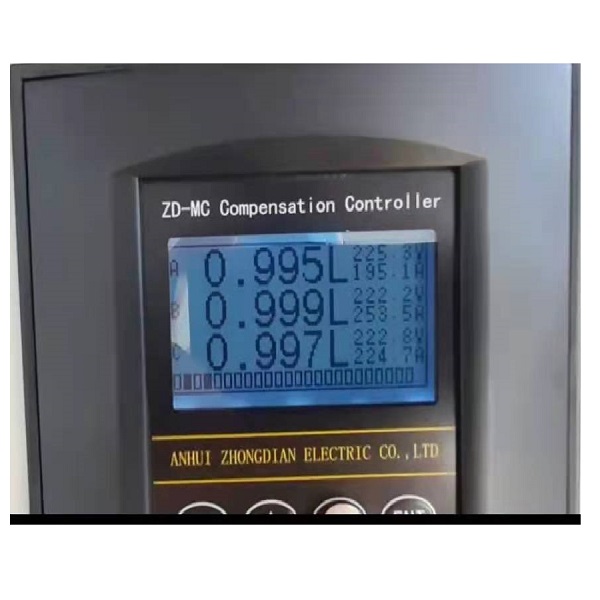

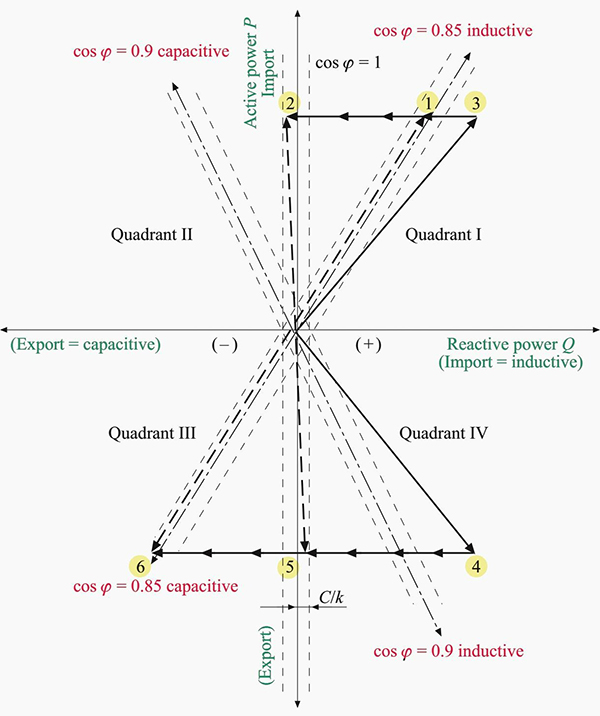

The four-quadrant reactive power compensation controller solves this pain point with full-range PQ vector detection. It accurately distinguishes four operating modes: grid supply with inductive loads, grid supply with capacitive loads, on-site power generation with inductive reactive power, and grid feedback with capacitive reactive power. Equipped with high-precision sampling circuits and intelligent control algorithms, the device automatically switches capacitor banks in real time to maintain stable reactive power balance according to actual operating conditions.

Core Advantages

First, it realizes dead-angle-free power factor monitoring, delivering precise compensation whether the system consumes electricity or feeds power back to the grid. Second, stable power factor output eliminates economic losses caused by unqualified reactive power indicators. Third, accurate reactive regulation suppresses voltage fluctuations, reduces transmission line losses and extends the service life of distribution equipment.

Typical Application Scenarios

This controller is widely adopted in distributed PV power stations, industrial manufacturing parks with large motor and inverter loads, wind power projects, energy storage systems and complex commercial power distribution centers.

Summary

Against the backdrop of new energy integration, four-quadrant reactive power controllers stand out from traditional single-quadrant products. Their full-state identification and bidirectional dynamic compensation capacity make them standard power quality devices to help enterprises meet grid standards, save energy and ensure stable system operation.
